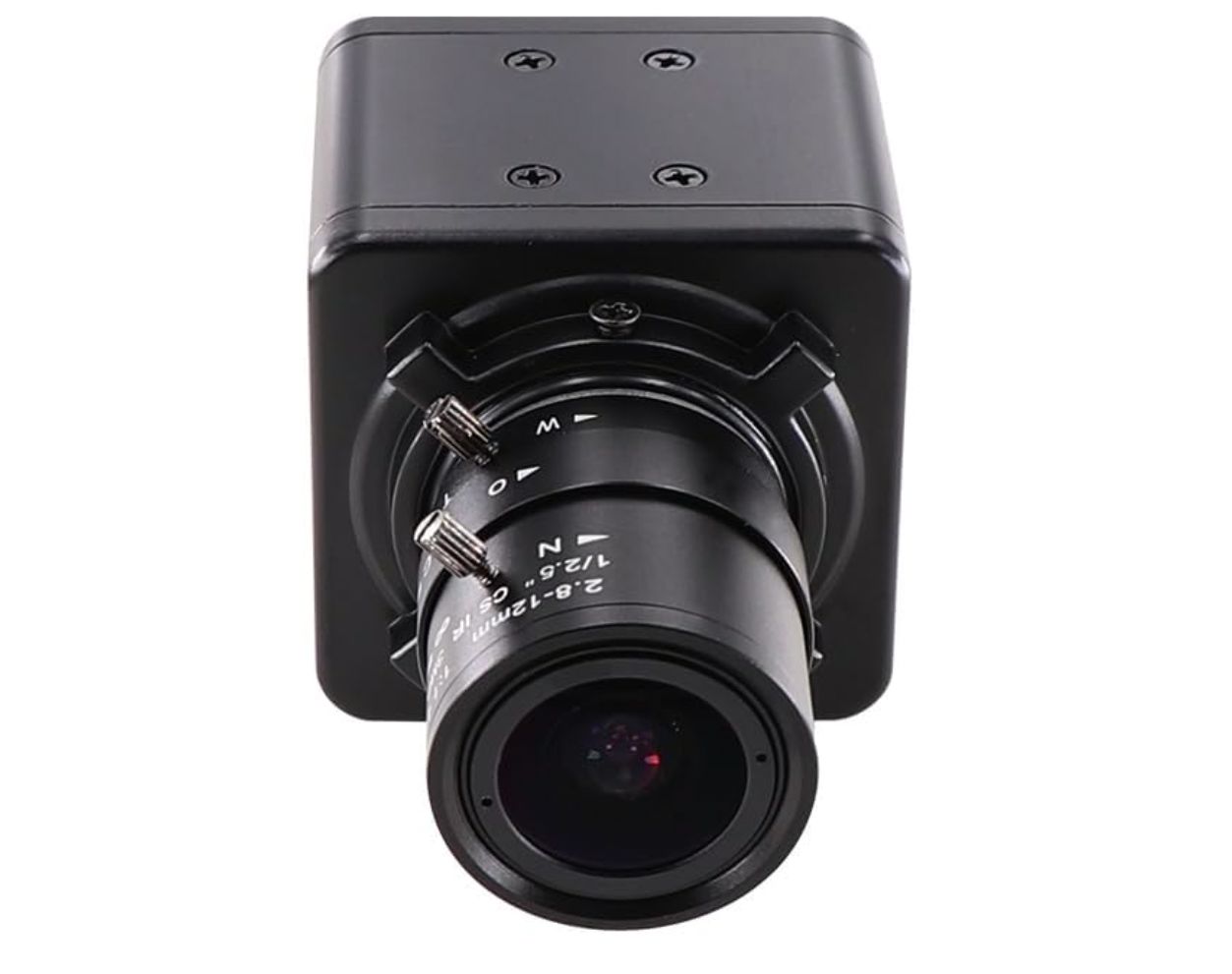

TOP NOTCH SWING CAMERA

Feature:

*Global Shutter High Speed 120fps at 1280 x 720p USB Camera with Mini Case with CS mount 2.8-12mm varifocal lens

*High speed USB 2.0 interface

*High quality image

*Low power consumption

*Small outline for embedded application

*UVC compliance for use in OS Windows, Linux, Android, Mac

*OTG support

Specification:

Model: KYT-U100-MCS2812GS1

Sensor: OmniVision CMOS

Focus: Manual

Resolution & frame :

1280X720 MJPEG 120fps

Compression format: MJPEG

Shutter Type: Global Shutter

Color Type: Color

Interface: USB 2.0

Lens Parameter : CS mount 2.8-12mm varifocal lens

Housing: Aluminum Mini Case

Voltage: DC5V

USB Video Class(UVC): Support

OTG : Support

Auto exposure AEC: Support

Auto white blance AEB: Support

Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB

Dimension: 50mm(L) x 40mm(W) x 55mm(H)

Operating Temperature: -20°C to 70°C

Support OS: Windows, Linux, MAC, Android
